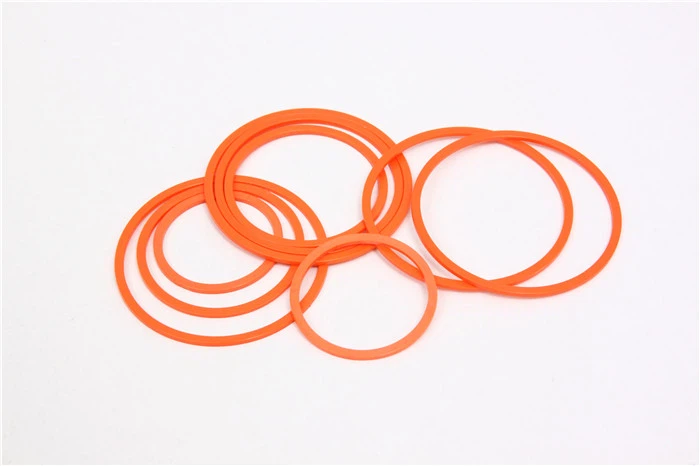

High Quality White/orange Color PTFE Back-up Ring

1/2

<< /span>

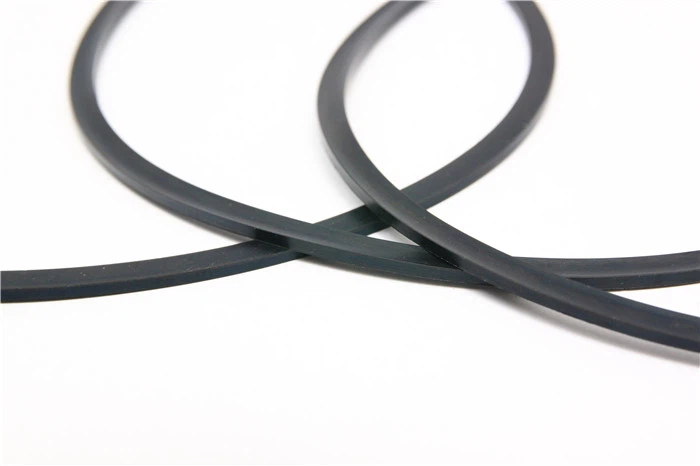

High Quality PTFE Back-up Ring

High Quality PTFE Back-up Ring Can significantly enhance and improve such ring sealed pressure capabilities and service life, has been widely used in hydraulic sealing system....

Send Inquiry

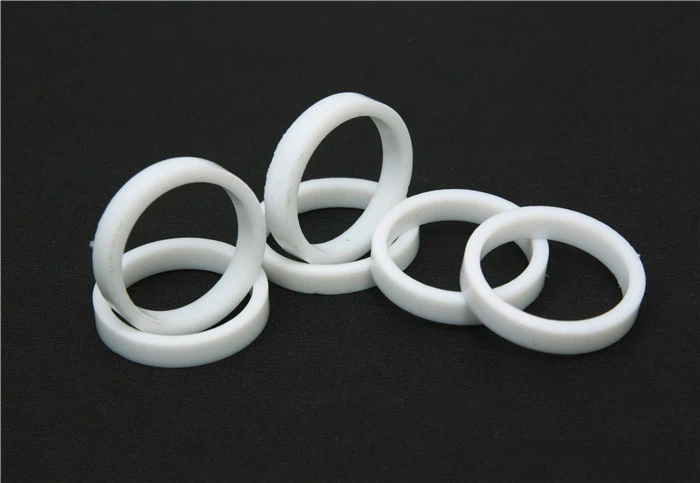

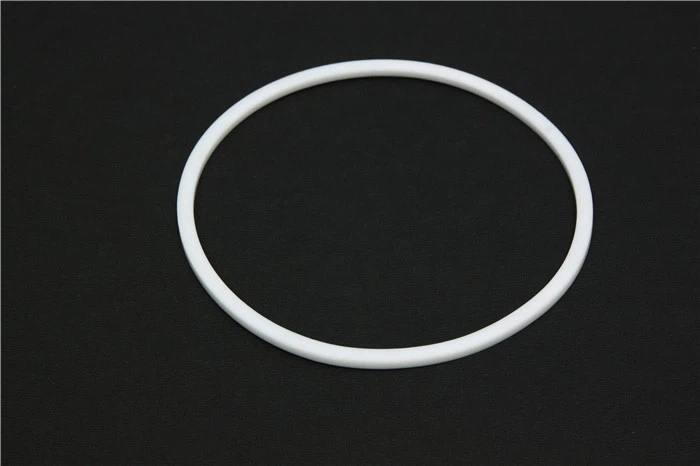

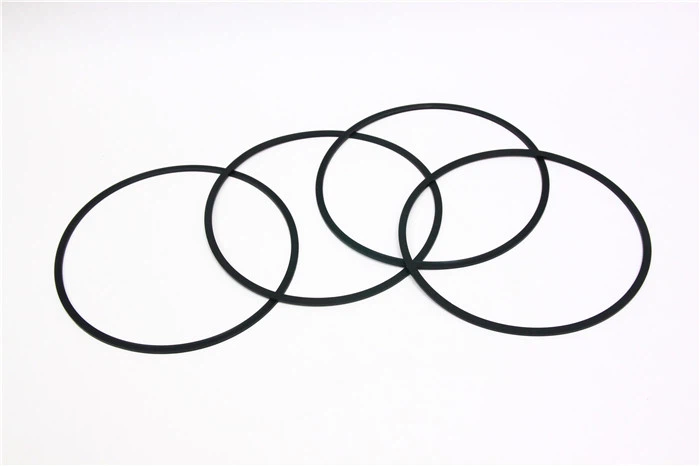

High Quality PTFE Back-up Ring

PTFE back-up ring seal with low pressure, such as the use of O-ring, star-shaped ring and U-ring. Can significantly enhance and improve such ring sealed pressure capabilities and service life, has been widely used in hydraulic sealing system.

1, the wide temperature range;

2, the friction is small;

3, non-absorbent;

4, does not occur in the 177 °C temperature aging.

5, high precision;

6, excellent chemical resistance, can be used for almost all of the media;

7, no hardening of breakage;

PTFE back-up ring is made of pure PTFE and its composite block O-back-up ring for dynamic sealing p ≥ 10mpa located Circlip bearing surfaces of the O-ring, a single compression set up a retaining ring, the double-sided compression, set the two back-up ring. PTFE back-up ring for hydraulic O-ring seal, working pressure 0-70mpa temperature: -40 ° C - +200 ° C Suitable medium: hydraulic oil, water, steam.

STANDARD NO: MS-27595

DASH NO.	ID	T	W	DASH NO.	ID	T	W	DASH NO.	ID	T	W
004	2.03	1.27	1.40	140	57.25	1.27	2.24	332	60.27	1.85	4.70
005	2.82			141	58.85			333	63.45
006	3.18			142	60.43			334	66.62
007	3.96			143	62.03			335	69.80
008	4.75			144	63.60			336	72.92
009	5.56			145	65.20			337	76.15
010	6.35			146	66.78			338	79.32
011	7.92			147	68.38			339	82.50
012	9.53			148	69.95			340	85.67
013	11.18			149	71.55			341	88.85
014	12.78			210	19.13	1.27	3.02	342	92.02
015	14.35			211	20.70			343	95.20
016	15.95			212	22.30			344	98.37
017	17.53			213	23.88			345	101.55
018	19.13			214	25.48			346	104.72
019	20.70			215	27.05			347	107.90
020	22.38			216	28.65			348	111.07
021	23.95			217	30.23			349	114.25
022	25.55			218	31.83			425	114.35	2.74	5.99
023	27.13			219	33.40			426	117.53
024	28.73			220	35.00			427	120.70
025	30.30			221	36.58			428	123.88
026	31.90			222	38.18			429	127.05
027	33.48			223	41.38			430	130.23
028	35.08			224	44.55			431	133.40
110	9.50	1.27	2.24	225	47.75			432	136.58
111	11.10			226	50.93			433	139.75
112	12.67			227	54.10			434	142.93
113	14.27			228	57.28			435	146.10
114	15.85			229	60.45			436	149.28
115	17.45			230	63.63			437	152.80
116	19.02			231	66.80			438	158.80
117	20.70			232	69.98			439	165.15
118	22.28			233	73.15			440	171.50
119	23.88			234	76.33			441	177.85
120	25.45			235	79.50			442	184.20
121	27.05			236	82.68			443	190.55
122	28.63			237	85.85			444	196.90
123	30.23			238	89.03			445	203.25
124	31.80			239	92.20			446	215.95
125	33.40			240	95.38			447	228.65
126	34.98			241	98.55			448	241.35
127	36.58			242	101.73			449	254.05
128	38.15			243	104.90			450	266.75
129	39.75			434	108.08			451	279.45
130	41.38			245	111.25			452	292.15
131	42.95			246	114.43			453	304.85
132	44.55			247	117.60			454	317.55
133	46.13			325	38.02	1.85	4.70	455	330.25
134	47.73			326	41.20			456	342.95
135	49.33			327	44.40			457	355.65
136	50.90			328	47.57			458	368.35
137	52.50			329	50.75			459	381.05
138	54.08			330	53.92			460	393.75
139	55.68			331	57.10

38 STANDARD NO: MS-28774

DASH NO.	ID	T	W	DASH NO.	ID	T	W	DASH NO.	ID	T	W
004	2.77	1.23 ± 0.09	1.35 ± 0.03	140	57.35	1.23 ± 0.09	2.19 ± 0.09	332	60.78	1.78 ± 0.13	4.65 ± 0.03
005	3.15			141	58.93			333	63.96
006	3.56			142	60.53			334	67.13
007	4.34			143	62.10			335	70.31
008	5.13			144	63.70			336	73.48
009	5.94			145	65.28			337	76.66
010	6.73			146	66.88			338	79.83
011	8.31			147	68.45			339	83.13
012	9.91			148	70.05			340	86.31
013	11.56			149	71.63			341	89.48
014	13.16			210	19.46	1.23 ± 0.09	3.03 ± 0.03	342	92.66
015	14.73			211	21.03			343	95.83
016	16.33			212	22.63			344	99.01
017	17.91			213	24.21			345	102.3
018	19.51			214	25.81			346	105.5
019	21.08			215	27.38			347	108.7
020	22.81			216	28.89			348	118.8
021	24.38			217	30.56			349	115
022	25.98			218	32.16			425	115.6	2.67 ± 0.12	6.01 ± 0.01
023	27.56			219	33.88			426	118.8
024	29.16			220	35.48			427	121.9
025	30.73			221	37.06			428	125.1
026	32.33			222	38.66			429	128.3
027	33.91			223	41.83			430	131.5
028	35.51			224	45.01			431	134.6
110	9.91	1.23 ± 0.09	2.19 ± 0.09	225	48.48			432	137.8
111	11.48			226	51.36			433	141
112	13.08			227	54.53			434	144.2
113	14.66			228	57.71			435	147.3
114	16.26			229	60.88			436	150.5
115	17.83			230	64.06			437	153.7
116	19.43			231	66.83			438	158.8
117	21.13			232	70.00			439	165.2
118	22.73			233	73.18			440	171.5
119	24.31			234	76.35			441	177.9
120	25.91			235	79.53			442	184.2
121	27.48			236	82.70			443	190.6
122	29.08			237	85.88			444	196.9
123	30.66			238	89.05			445	203.3
124	32.26			239	92.2			446	216
125	33.83			240	95.38			447	228.7
126	35.48			241	98.55			448	241.4
127	37.06			242	101.7			449	254.1
128	38.66			243	104.9			450	266.8
129	40.23			244	108.1			451	279.5
130	41.83			245	111.3			452	292.3
131	43.41			246	114.4			453	304.9
132	45.01			247	117.6			454	317.6
133	46.58			325	114.6	1.78 ± 0.13	4.65 ± 0.03	455	330.3
134	48.18			326	41.55			456	343
135	49.76			327	44.78			457	355.7
136	51.36			328	47.96			458	368.4
137	52.93			329	51.13			459	381.1
138	54.53			330	54.31			460	393.8
139	56.11			331	57.61

39 STANDARD NO:LAPAN

DASH NO.	ID	T	W	DASH NO.	ID	T	W	DASH NO.	ID	T	W
P3	3	1.5	1.25	P63	63	5.0	1.9	P315	315	7.5	2.75
P4	4			P65	65			P330	330	7.5	2.75
P5	5			P67	67			G25	25	2.5	1.25
P6	6			P70	70			G30	30
P7	7			P71	71			G35	35
P8	8			P75	75			G40	40
P9	9			P80	80			G45	45
P10	10			P85	85			G50	50
P10A	10	2.0	1.25	P90	90			G55	55	5.0	1.9
P11	11			P95	95			G60	60
P11.2	11.1			P100	100	5.0	1.9	G65	65
P12	12			P102	102			G70	70
P12.5	12.5			P105	105			G75	75
P14	14			P110	110			G80	80
P15	15			P112	112			G85	85
P16	16			P115	115			G90	90
P18	18			P120	120			G95	95
P20	20			P125	125			G100	100
P21	21			P130	130			G105	105
P22	22			P132	132			G110	110
P22A	22	3.0	1.25	P135	135			G115	115
P22.4	22.4			P140	140			G120	120
P24	24			P145	145			G125	125
P25	25			P150	150			G130	130
P25.5	25.5			P150A	150	7.5	2.75	G135	135
P26	26			P155	155			G140	140
P28	28			P160	160			G145	145
P29	29			P165	165			G150	150	5.0	1.9
P29.5	29.5			P170	170			G155	155
P30	30			P175	175			G160	160
P31	31			P180	180			G165	165
P31.5	31.5			P185	185			G170	170
P32	32			P190	190			G175	175
P34	34			P195	195			G180	180
P35	35			P200	200			G185	185
P35.5	35.5			P205	205			G190	190
P36	36			P209	209			G195	195
P38	38			P210	210			G200	200
P39	39			P215	215			G205	205
P40	40			P220	220			G210	210
P41	41			P225	225			G215	215
P42	42			P230	230			G220	220
P44	44			P235	235			G225	225
P46	46			P240	240			G230	230
P48	48			P245	245			G235	235
P48	49			P250	250			G240	240
P50	50			P255	255			G245	245
P48A	48	5.0	1.9	P260	260			G250	250
P50A	50			P265	265
P52	52			P270	270
P53	53			P275	275
P55	55			P280	280
P56	56			P285	285
P58	58			P290	290
P60	60			P295	295
P62	62			P300	300

40 STANDARD NO:LAPAN)

RINDS NO.	SPIRAL				RINDS NO.	SPIRAL				DASH NO.	SPIRAL
RINDS NO.	ID	T	W	Z	RINDS NO.	ID	T	W	Z	DASH NO.	ID	T	W	Z
P3	3	1.5	0.7	1.2	P38	38	3.0	0.7	2.5	P135	135	5.0	0.9	4.5
P4	4				P39	39				P140	140
P5	5				P40	40				P145	145
P6	6				P41	41				P150	150
P7	7				P42	42				P150A	150	7.5	1.4	6.0
P8	8				P44	44				P155	155
P9	9				P46	46				P160	160
P10	10				P48	48				P165	165
P10A	10	2.0	0.7	1.4	P49	49				P170	170
P11	11				P50	50				P175	175
P11.2	11.2				P48A	48	5.0	0.9	4.5	P180	180
P12	12				P50A	50				P185	185
P12.5	12.5				P52	52				P190	190
P14	14				P53	53				P195	195
P15	15				P55	55				P200	200
P16	16				P56	56				P205	205
P18	18				P58	58				P210	210
P20	20				P60	60				P215	215
P21	21				P63	63				P220	220
P22	22				P65	65				P225	225
P22A	22	3.0	0.7	2.5	P67	67				P230	230
P22.4	22.4				P70	70				P235	235
P24	24				P71	71				P240	240
P25	25				P75	75				P245	245
P25.5	25.5				P80	80				P250	250
P26	26				P85	85				P255	255
P28	28				P90	90				P260	260
P29	29				P95	95				P265	265
P29.5	29.5				P100	100				P270	270
P30	30				P102	102				P275	275
P31	31				P105	105				P280	280
P31.5	32.5				P110	110				P285	285
P32	32				P115	115				P290	290
P34	34				P120	120				P295	295
P35	35				P125	125				P300	300
P35.5	35.5				P130	130
P36	36				P132	132
